Test Record

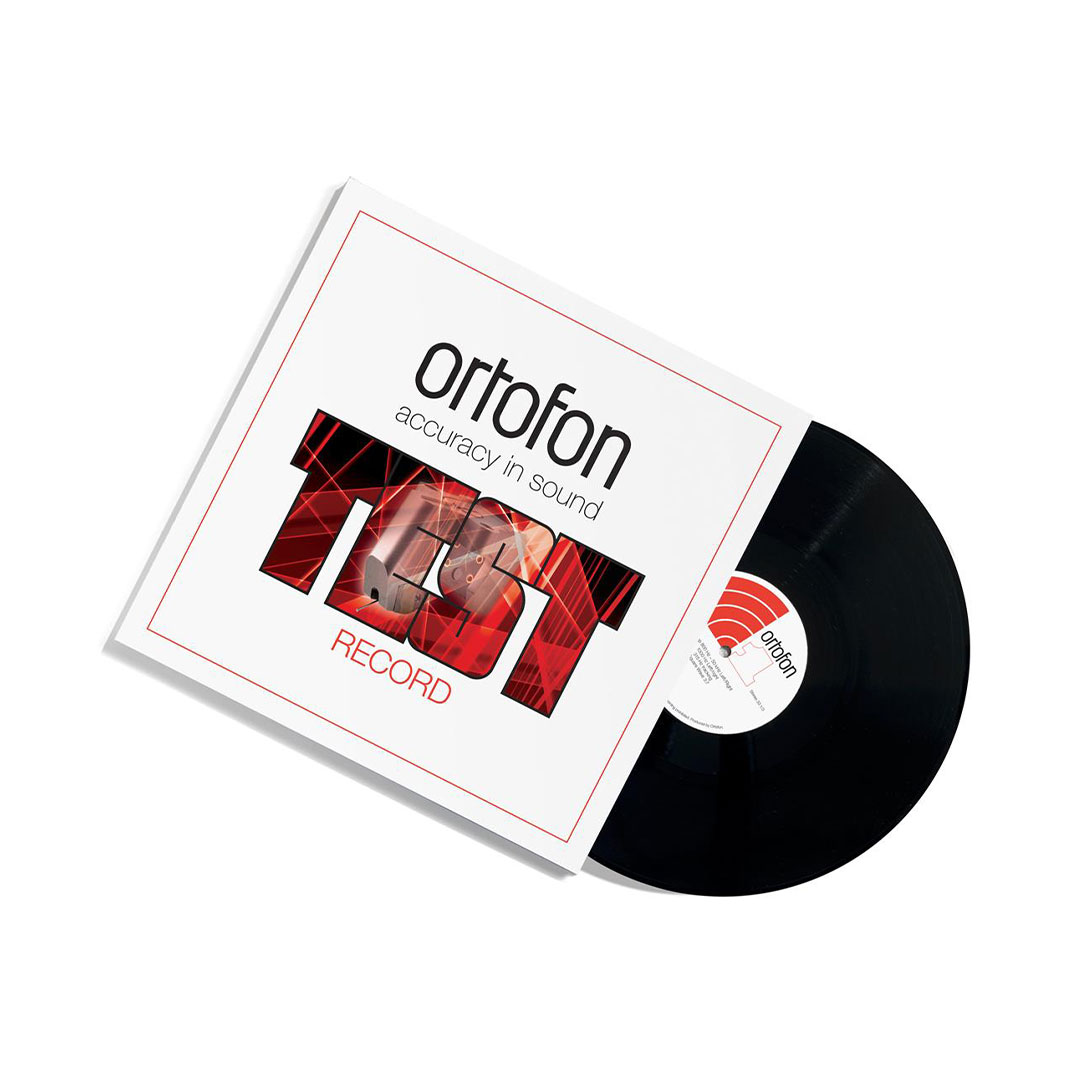

Ortofon’s new Test Record is designed to allow you to verify your HiFi system in the most natural audio surroundings at home.

Test Record

The Test Record contains special test signals developed for analysing cartridge performance as well as its interaction with your tonearm and turntable. Before testing your cartridge, please verify the HiFi system’s functionality. The left speaker should be connected to the left amplifier channel and vice versa; both speakers should work in phase and be optimally positioned in the room.

The Test Record is designed to be played through your system with in-built RIAA equalisation. Volume control is recommended to be set at a moderate signal level.

Please refer to your turntable and tonearm’s instructions for correct installation and alignment, adjust tonearm to be parallel to record surface, set Vertical Tracking Force and anti-skating according to the cartridge’s recommended technical data, and adjust stylus overhang.

Track Listing

      Each side of the record consists of 15 tracks which have been cut from 1-4 and 5-15:
      1. Frequency Sweep Left Channel 800 Hz – 50 kHz. Log. 28 sec. Linear cut* (800 – 20000 Hz ±1,5 dB)
      2. Frequency Sweep Right Channel 800 Hz – 50 kHz. Log. 28 sec. Linear cut* (800 – 20000 Hz ±1,5 dB)
      3. Frequency Sweep Left Channel 800 Hz – 50 kHz. Log. 28 sec. Linear cut* (800 – 20000 Hz ±1,5 dB)
      4. Frequency Sweep Right Channel 800 Hz – 50 kHz. Log. 28 sec. Linear cut* (800 – 20000 Hz ±1,5 dB)
      5. Reference tone 1000 Hz 5 cm/sec rms Left
      6. Reference tone 1000 Hz 5 cm/sec rms Right
      7. Reference tone 1000 Hz 5 cm/sec rms Left
      8. Reference tone 1000 Hz 5 cm/sec rms Right
      9. Tracking ability, lateral 50 μm peak
      10. Tracking ability, lateral 60 μm peak
      11. Tracking ability, lateral 70 μm peak
      12. Tracking ability, lateral 80 μm peak
      13. Tracking ability, lateral 90 μm peak
      14. Tracking ability, lateral 100 μm peak
      15. Square Wave Form 2.7 msec duty cycle 3:7
    * The record has a constant velocity amplitude throughout the sweep.

1-4 Frequency sweep – a tool for checking frequency response:
There are several factors which can affect frequency response, including cable capacitance, cartridge loading, tracking force and worn parts. Because of this, it can be difficult to achieve perfectly flat frequency response. Sometimes by making small compromises in the cartridge loading, a better overall frequency response can be achieved. Considering the above the signal must be clean throughout the sweep.

5-8 Reference tone for testing channel output:
With this standard reference signal is it possible to check the correctness of the connections of the left and right channels, channel balance and speed of the turntable.

9 -14 Tracking ability test, 315 Hz lateral modulation:
These tracks contain a 315 Hz signal, recorded at increasing pick amplitudes of 50, 60, 70, 80, 90 and 100 micrometers. Please refer to your cartridge’s tracking ability value specified in the technical data sheet. Your cartridge should be able to track the actual level without audible distortion. Inability to track can be heard as a departure from a pure tone or a sputtering and intermittent tone. To determine if it is one or both channels, the balance control can be utilised. In case of differing tracking ability in the left and right channels it is probably necessary to readjust the anti-skating correction of the tonearm. If both channels fail to track properly, then vertical tracking force should be increased until no further improvement of tracking force can be obtained.

15. Square Wave Form 2.7 msec duty cycle 3:7:
When monitoring the output of your cartridge with an oscilloscope you’ll then see a square wave located precisely above each other if the connection from the cartridge is correct.

After successful completion of the above test procedures, you can ensure that your cartridge is optimised. Still the human ear is very sensitive to difference in tone distortion; its level depends on the stylus condition and record wear.

To maintain optimal sound reproduction and to minimise wear on your records as well as on your stylus, we recommend the following procedure before and after each playback:

  • Remove dust carefully from record surfaces by using a fine anti-static brush or cloth before every use.
  • Please remember to remove dust from the diamond tip before and after playback of each record
  • In order to keep electrical contacts clean and to lubricate the knurled nut on the tonearm, Ortofon recommends occasionally a light spray of contact cleaner like DeoxIT ®Gold G-Series into the tonearm socket.

It should be noted that some phono equalisers may generate some tone distortion, which cannot be referred to the cartridge.

This product is no longer available to order and will not be coming back into stock.

In Stock products are those that are currently held in stock at our Oxfordshire warehouse. This stock status is updated regularly but is subject to change at very short notice.

Products that are Awaiting Stock are items that we would normally carry on stock at our Oxfordshire warehouse, but are currently unavailable. Chances are there is already more on the way, but if you would like a more accurate availability status please feel free to Contact Us.

Urgent order items are products that we do not normally carry on stock, but they are typically held on stock by our European suppliers. Depending on availability, we will seek to order these products quickly, when we have an enquiry. They can therefore be subject to quicker availability times than "Special Order" products.

Special Order items are those that are most often built to order. For these items, we tend to experience longer lead times as we negotiate them into the production line with our suppliers.

Test Record

RRP: £40.00

Ortofon’s new Test Record is designed to allow you to verify your HiFi system in the most natural audio surroundings at home.

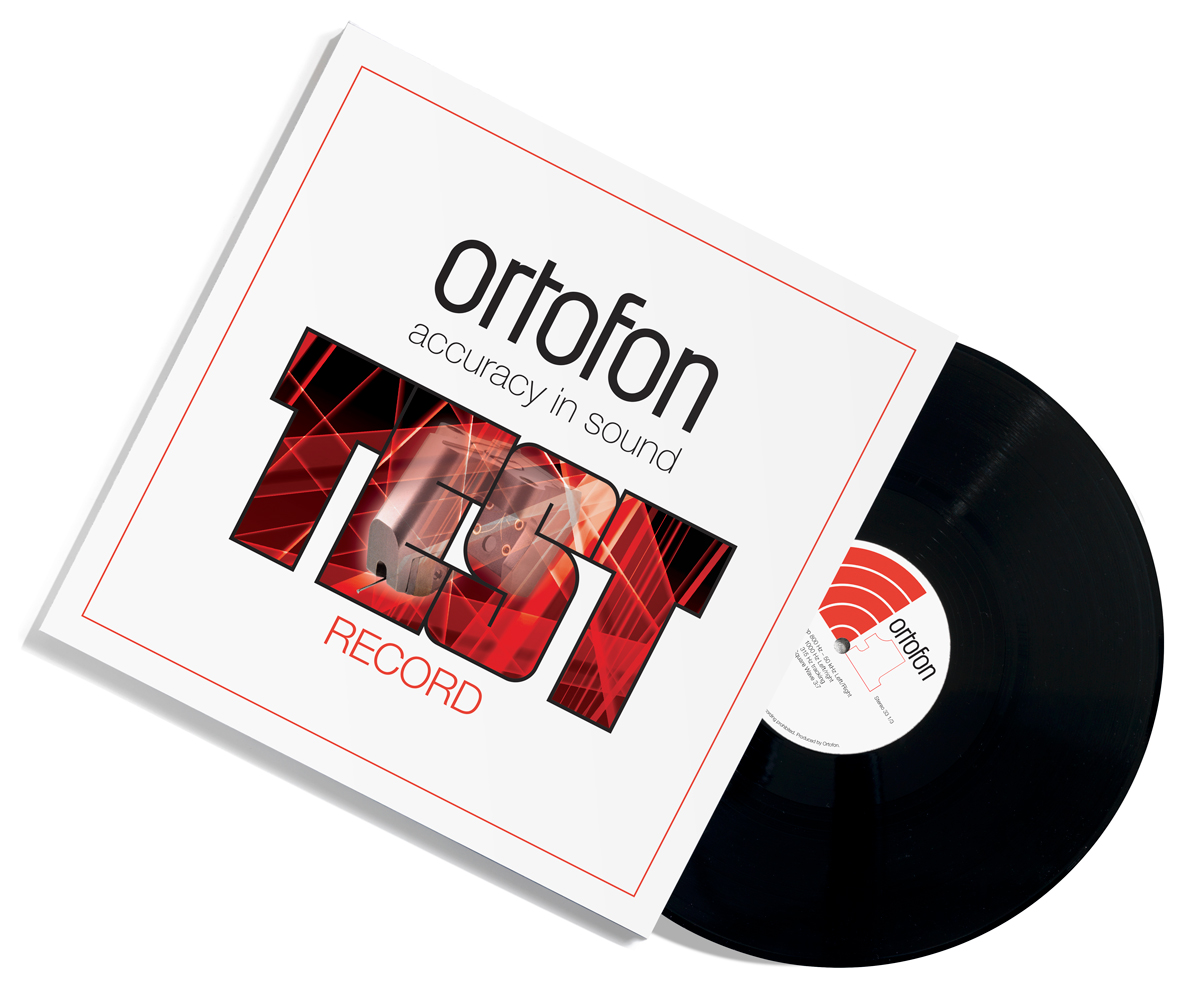

  • JPG | 371 Kb | Stock Photo
